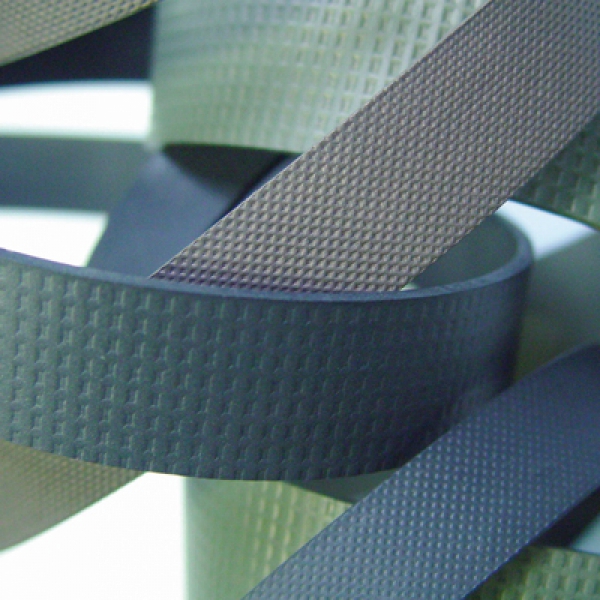

Bandes de Guidage
Les demandes de plus en plus spécifiques du secteur des étanchéités hydraulique, de la transmission du mouvement et des applications dans le secteur mécanique, ont créé des conditions pour la naissance d’une nouvelle famille de produits, caractérisés par l’emploi de chargés sophistiqués et de technologies productives qui garantissent aux produits des prestations appropriées aux exigences des clients.
L’utilisation de bronze, carbone, graphite ou autres charges spéciales nait du besoin de satisfaire les exigences relatives à plus de paramètres:
- résistance à l’usure
- glissement
- résistance aux écrasements
On peut les fournir:
- avec les angles aigus
- chanfreinées sur 2 ou 4 coins
- moletées sur 1 ou 2 faces
- traitées collable sur 1 ou 2 faces
Thickness from mm. 1,5 to mm. 5 - Width from mm. 4 to mm. 300
| Width in mm. | Thicknessn in mm. | ||
| 4 | |||
| 5 | |||
| 5,4 | |||
| 5,5 | |||
| 6 | |||
| 6,1 | |||
| 7 | 1,50 - 2,00 | ||
| 7,9 | 2,50 - 3,00 | ||
| 8 | 4,00 - 5,00 | ||
| 9 | |||
| 9,5 | |||
| 9,8 | |||
| 11 | |||
| 11,5 | |||
| 12 | |||
| Width in mm. | Thicknessn in mm. | ||
| 12,5 | |||
| 13 | |||
| 14 | |||
| 14,5 | |||
| 15 | |||
| 16 | |||
| 16,5 | 1,50 - 2,00 | ||
| 18 | 2,50 - 3,00 | ||
| 19,5 | 4,00 - 5,00 | ||
| 20 | |||
| 21,5 | |||
| 22 | |||
| 24 | |||
| 24,5 | |||
| 25 | |||
| Width in mm. | Thicknessn in mm. | ||
| 27 | |||
| 27,5 | |||
| 28 | |||
| 29,5 | |||
| 30 | |||
| 30,5 | |||
| 31,5 | 1,50 - 2,00 | ||
| 32 | 2,50 - 3,00 | ||
| 34 | 4,00 - 5,00 | ||
| 34,5 | |||
| 35 | |||
| 38 | |||
| 40 | |||
| 45 | |||
| 50 | |||
Tolerance standard
|
Width
|
||
| from 3,00 to 40,00 mm. | ± 0,10 mm. | |
|
|
||
| from 40,011 to 50,00 mm. | ± 0,20 mm. | |
|
Thickness
|
||
| from 1,00 to 4,00 mm. | + 0/-0,05 mm | |
|
|
||
| from 4,01 to 5,00 mm. | ± 0,05 mm. | |
|
Rolls lenght
|
||
|
Thickness mm.
|
Width mt.
|
|
|
1,5
|
35
|
|
|
2
|
25
|
|
|
2,5
|
20
|
|
|
3
|
16
|
|
|
4
|
24
|
|
|
5
|
15
|
|
* Customized dimensions on request.
